Product Overview

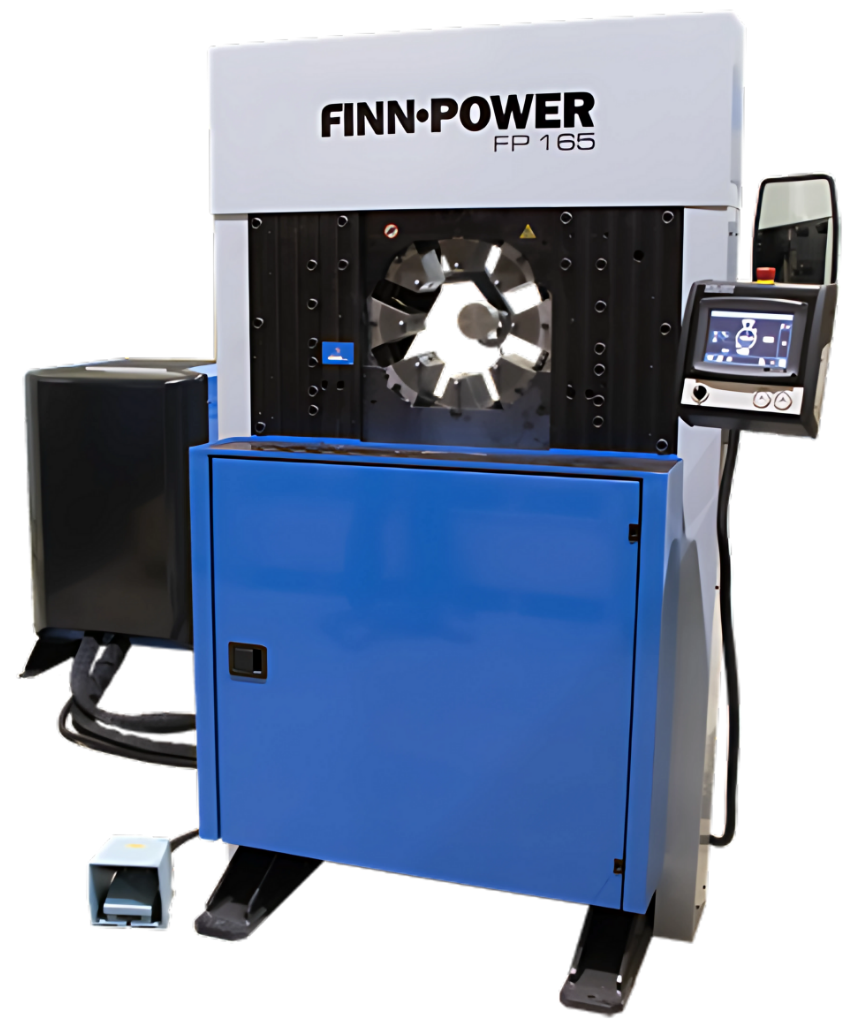

The FP165 is a powerful production crimper for large-diameter hydraulic and industrial hoses. It’s the higher-capacity partner to FP160, ideal for bigger flanges and fittings, with ICC touchscreen control and a wide options range to suit high-volume workflows.
Key Features
- Capacity & force – Max crimping Ø with master dies 230 mm / 9″; max crimping force 5,000 kN; hydraulic hose size up to 6″; industrial hose size up to 7.95″
- Openings – +125 mm die travel; 345 mm max opening without dies for easier loading
- Speed & power – 3.6 s theoretical 10 mm cycle; 5.5 kW / 7.5 HP motor; 135 L oil tank
- Die systems – Uses 32- and 160-series dies; master die D/L 220/116 mm (8.66/4.57″)
- Control – ICC 7″ touchscreen with pressure crimping (ICC1) and step crimping (ICC2)
- Standard features – QuickChange tool, electric backstop, mirror, adapter dies (32-series), foot pedal
- Options – Smart Die Rack (SDR), mechanical backstop, auto greasing G3, ETH interface (TCP/IP & UDP), A3 signal, oil cooler J3, pinning support mandrel, ICC3/ICC4 quality control, bar-code reader, speed adjustment, Oil Condition Monitoring (OCM), Industry 4.0, camera with 7″ display; HB/HS layouts
- Dimensions & weight – Machine 1060 × 860 × 1,825 mm; hydraulic unit 782 × 753 × 1,043 mm. Weight: machine 2,480 kg; hydraulic unit 220 kg
