Product Overview

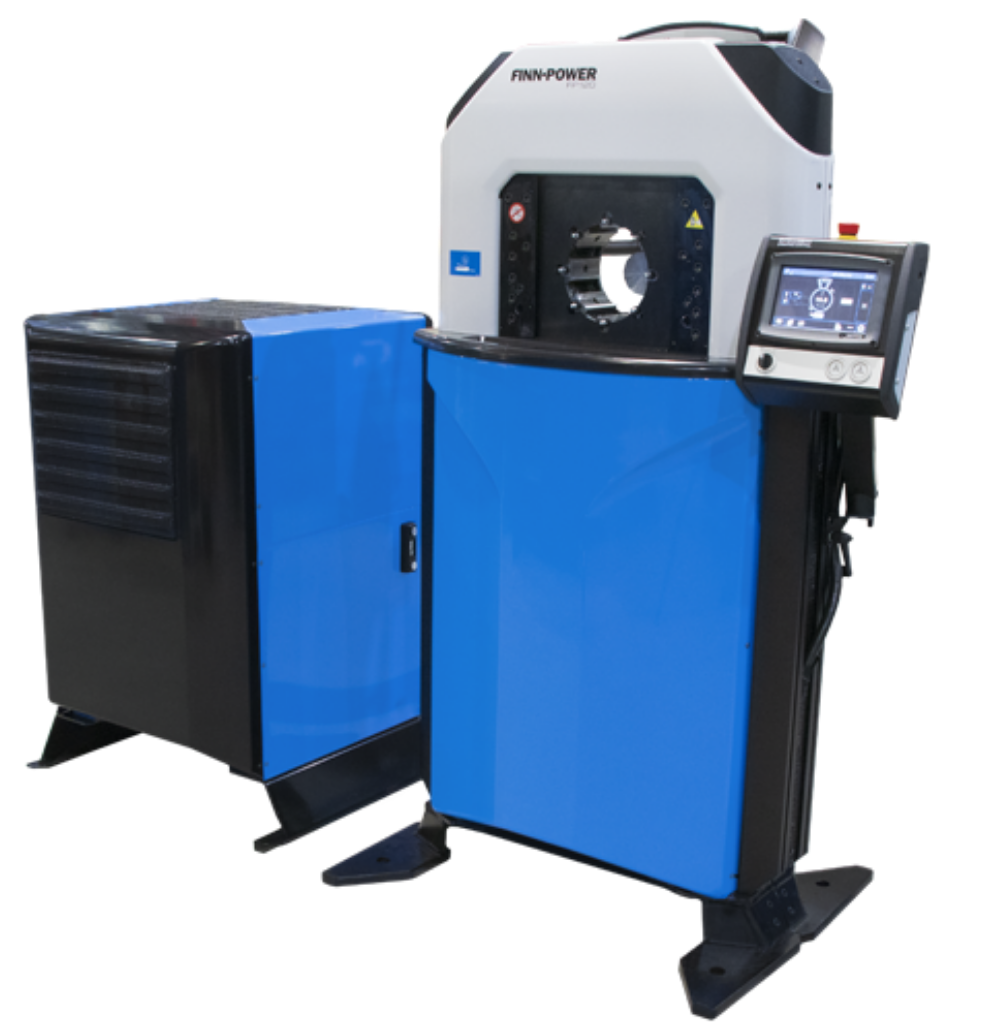

The FP120 is a compact, easy-to-use production crimper designed to handle the highest output volumes. It’s available either as a compact model or with a separate hydraulic unit – choosing the separate unit keeps the rear of the machine free for part feeding from the back when needed.
Key Features
Capacity & force – Max crimping Ø with master dies 109 mm / 4.3″; hydraulic hose size up to 2″; industrial hose size up to 3.42″; max crimping force 2,800 kN.
Openings – +68 mm die travel; 167 mm max opening without dies for easy loading.
Speed & power – 1.8 s theoretical 10 mm cycle (S-model: 1.6 s); 5.5 kW / 7.5 HP motor; 135 L oil tank.
Die system – 32-series dies; master die D/L 99/97 mm.
Control – ICC 7″ touchscreen or SCC 5″ touchscreen; pressure crimping and step crimping supported.
Standard features – QuickChange tool, electric backstop, mirror, die racks.
Options – Foot pedal, side table/die racks, mechanical backstop, ETH interface (TCP/IP & UDP), oil cooler J3, pinning support mandrel, HB/HS layouts; ICC-only: Smart Die Rack (SDR), ICC3/ICC4 quality control, auto greasing G3, bar-code reader, speed adjustment, Oil Condition Monitoring, Industry 4.0, A3 signal, camera with 7″ display.
Dimensions & weight – Machine 881 × 664 × 1,561 mm; hydraulic unit 782 × 753 × 1,043 mm. Weight: machine 875 kg; hydraulic unit 220 kg; compact setup 1,060 kg.
